10MHz LOCAL OSCILLATOR
10MHz local oscillator. Under
development
HOME > PROJECT
> 630M
TRANSVERTER
>
The
10MHz local oscillator design is a combination of G3XBM
designed local oscillator used for a similar 137kHz transverter and an ARRL Hand Book's
local oscillator design for a 160m band transverter. The success of
the this 10MHz oscillator will also be the used for a future 137kHz transverter.

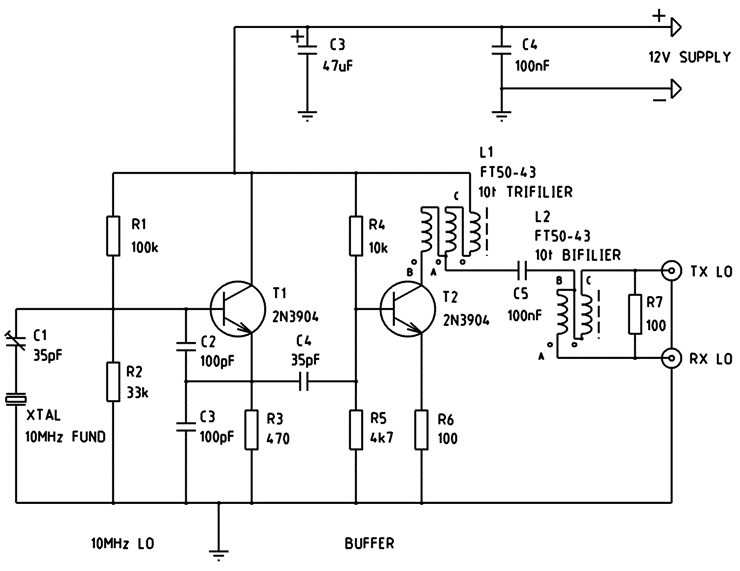

Fig 1 Schematic of the
10MHz crystal lock oscillator and buffer stage. This circuit is
subject to further development.
Component
details
|
XTAL
|
XTAL 10MHz Fundamental
HC49U
|
|
Q1
|
Transistor - 2N3904
TO-92
|
|
Q2
|
Transistor - 2N3904
TO-92
|
|
R1
|
Resistor 100k 0.25W
Carbon
|
|
R2
|
Resistor 33k
0.25W Carbon
|
|
R3
|
Resistor 470
0.25W Carbon
|
|
R4
|
Resistor 10k 0.25W
Carbon
|
|
R5
|
Resistor 4k7 0.25W
Carbon
|
|
R6
|
Resistor 100 0.25W
Carbon
|
|
R7
|
Resistor 100 0.25W
Carbon
|
|
C1
|
Capacitor - trimmer 5
- 60pf (35pf)
|
|
C2
|
Capacitor - Ceramic -
100pf
|
|
C3
|
Capacitor - Ceramic -
100pf
|
|
C4
|
Capacitor - Ceramic -
33pf
|
|
C5
|
Capacitor - Ceramic -
100nf
|
|
C6
|
Capacitor - Electrolytic
- 47uf 50v
|
|
C7
|
Capacitor - Ceramic -
100nf
|
|
L1
|
FT50-43 Toroidal
core Amidon PN# FT-50-43
|
|
L2
|
FT50-43 Toroidal
core Amidon PN# FT-50-43
|
The two RF transformers are wound per
Fig 2 & 3 winding details of 10turns of Bifiliar and Trifiliar
windings on a FT50-43 Toroidal cores.
|
|
|
|

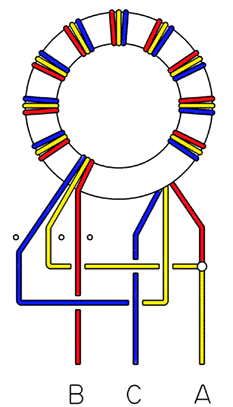

Fig 2
L1
winding details for the matching transformer
|
Fig 3
L2
winding details for the splitter transformer
|

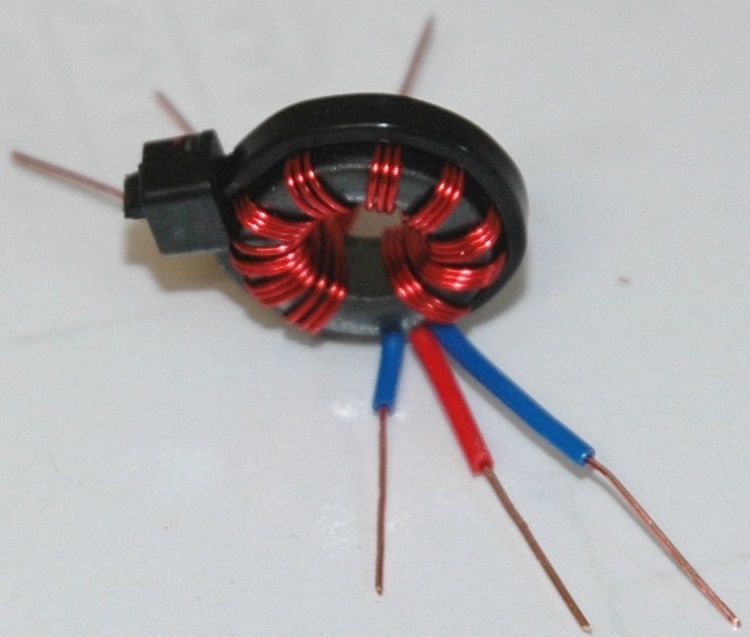

Photo 1 Assembled L1 matching transformer

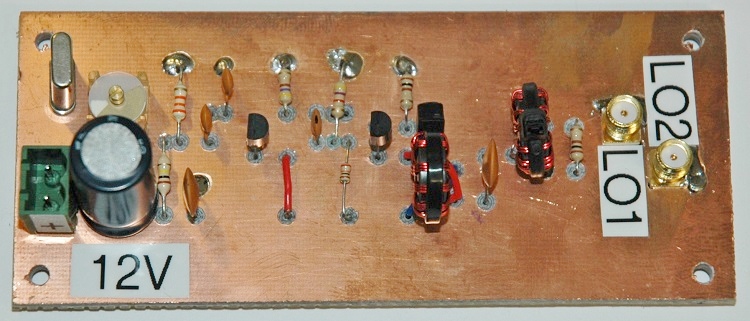

Photo 2 Assembled local
isolator and buffer circuit.
